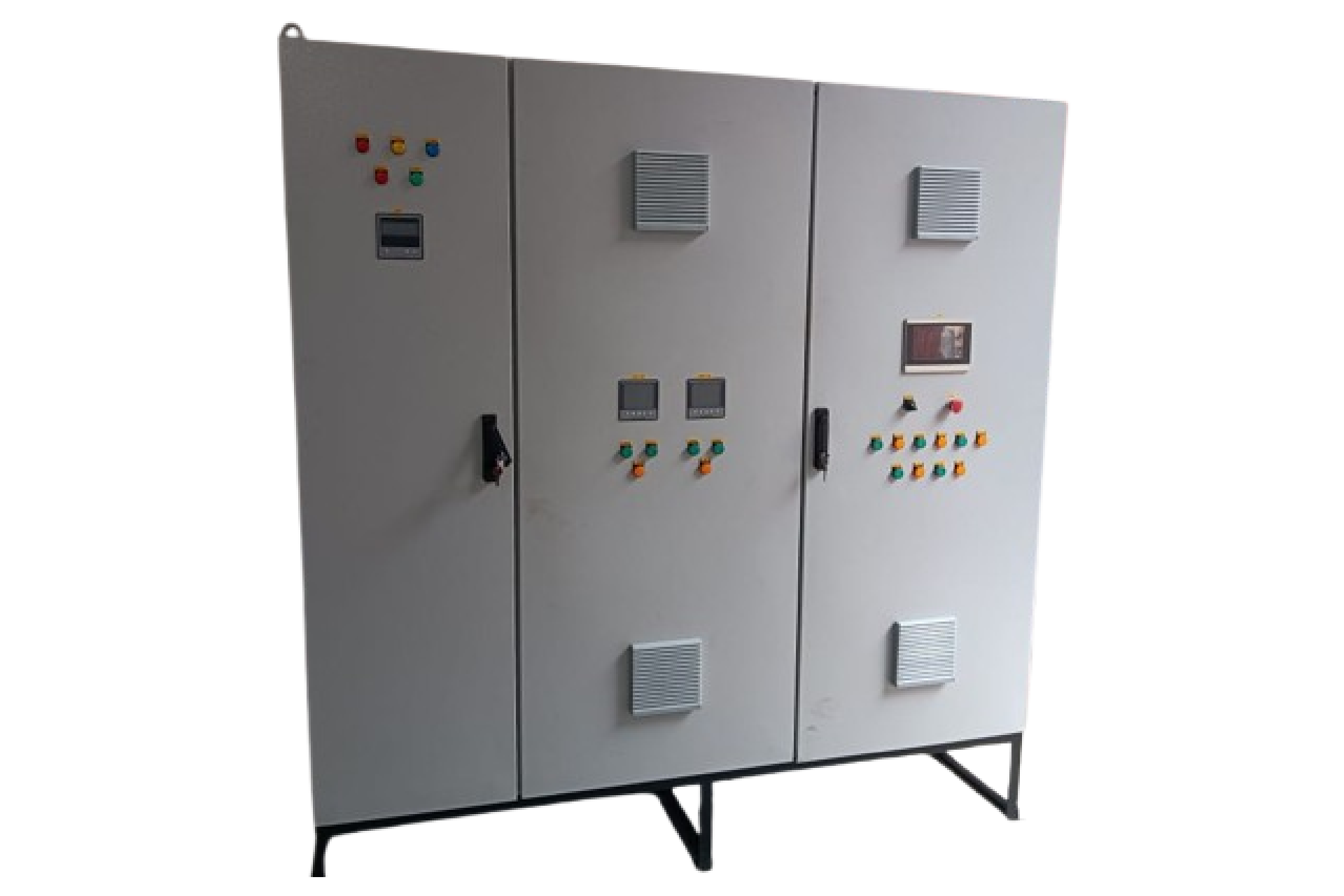

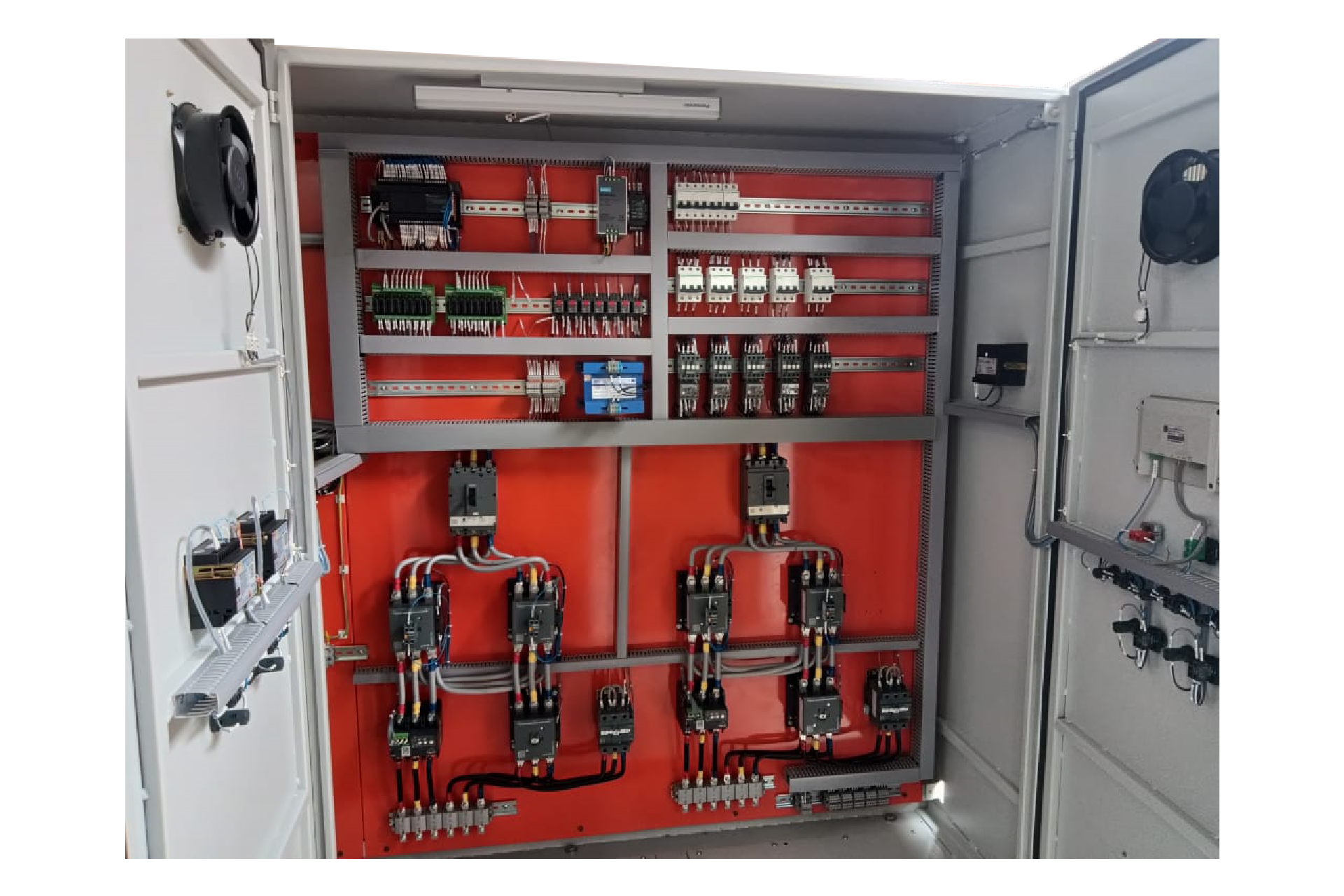

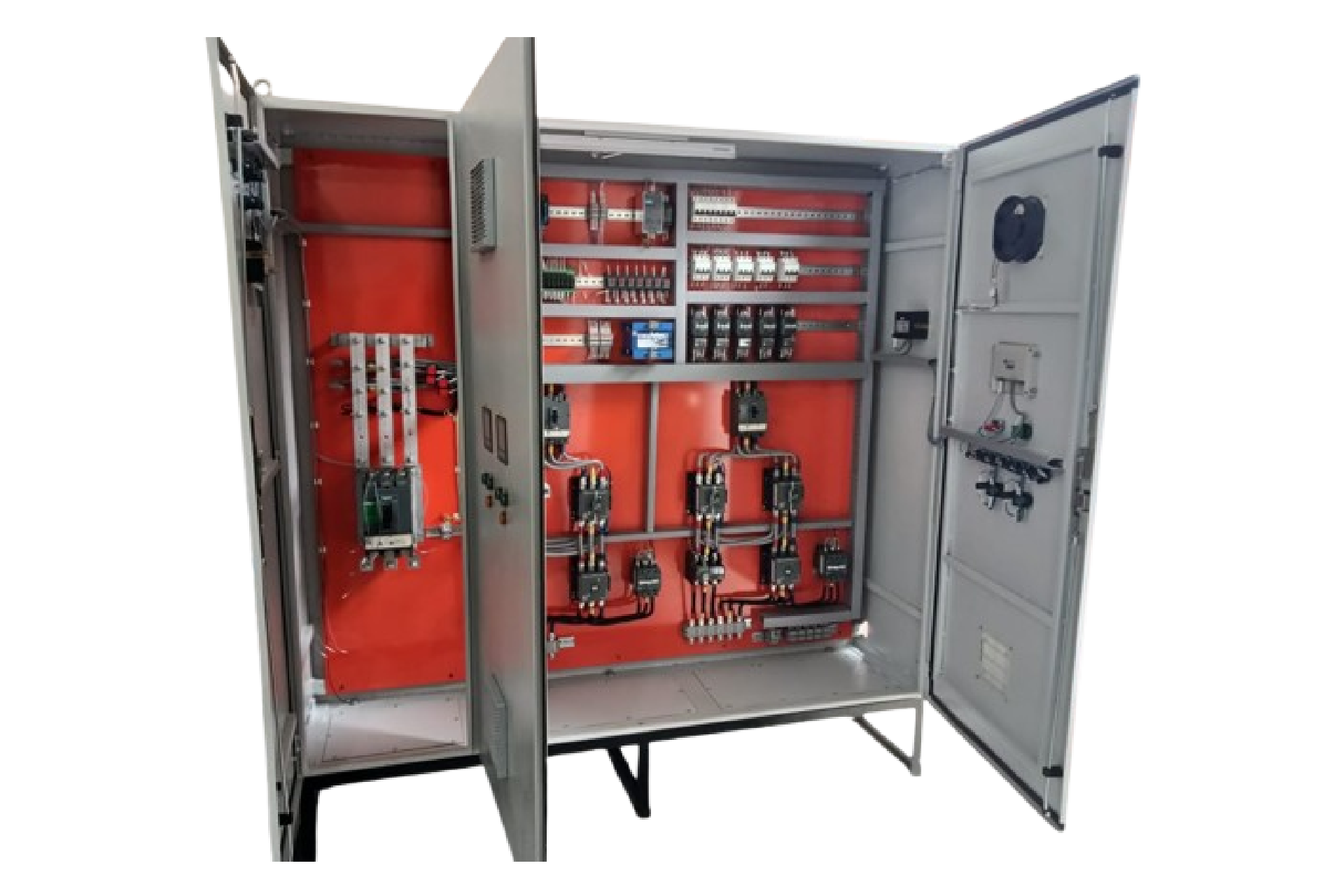

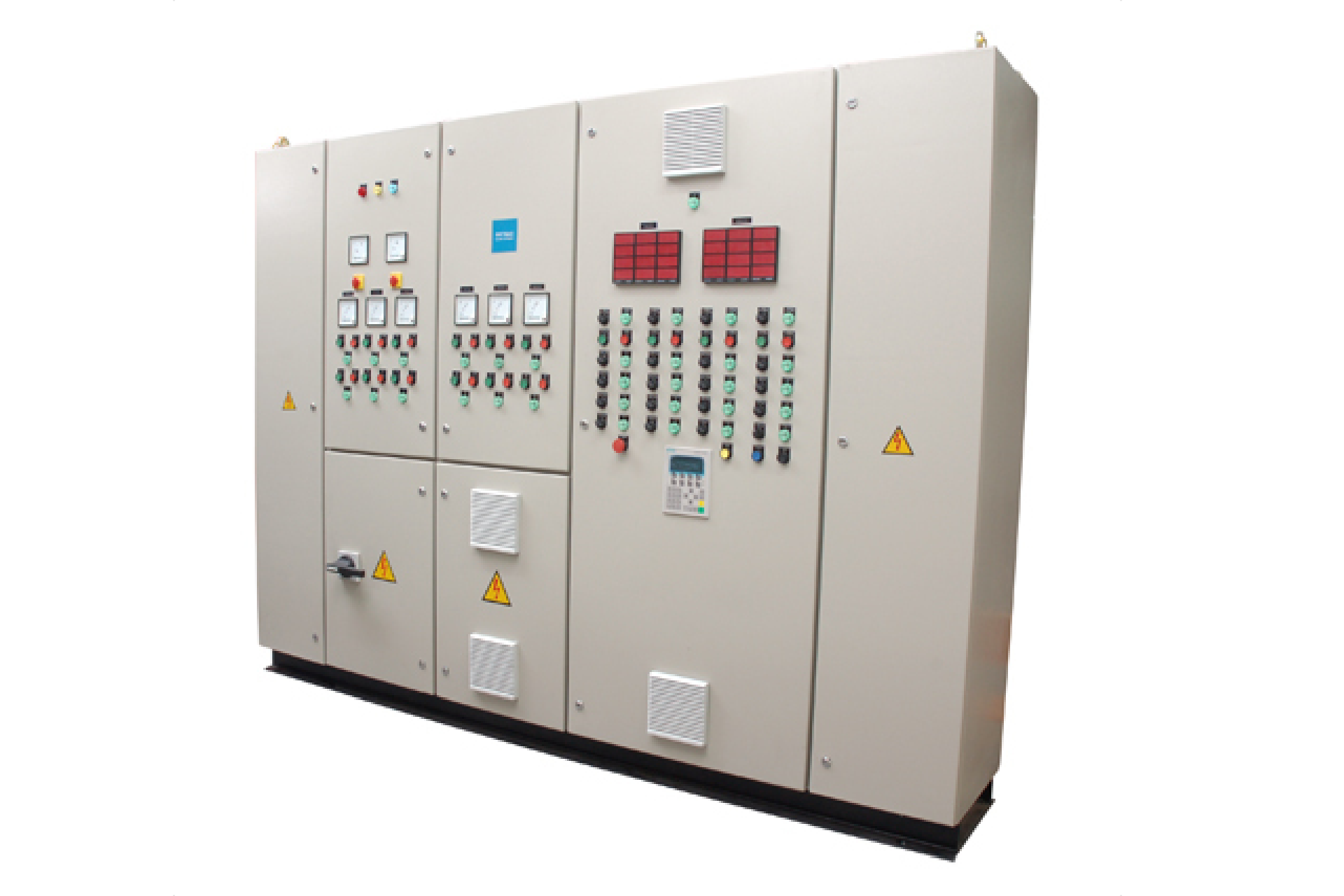

MCC Cum PLC Panel

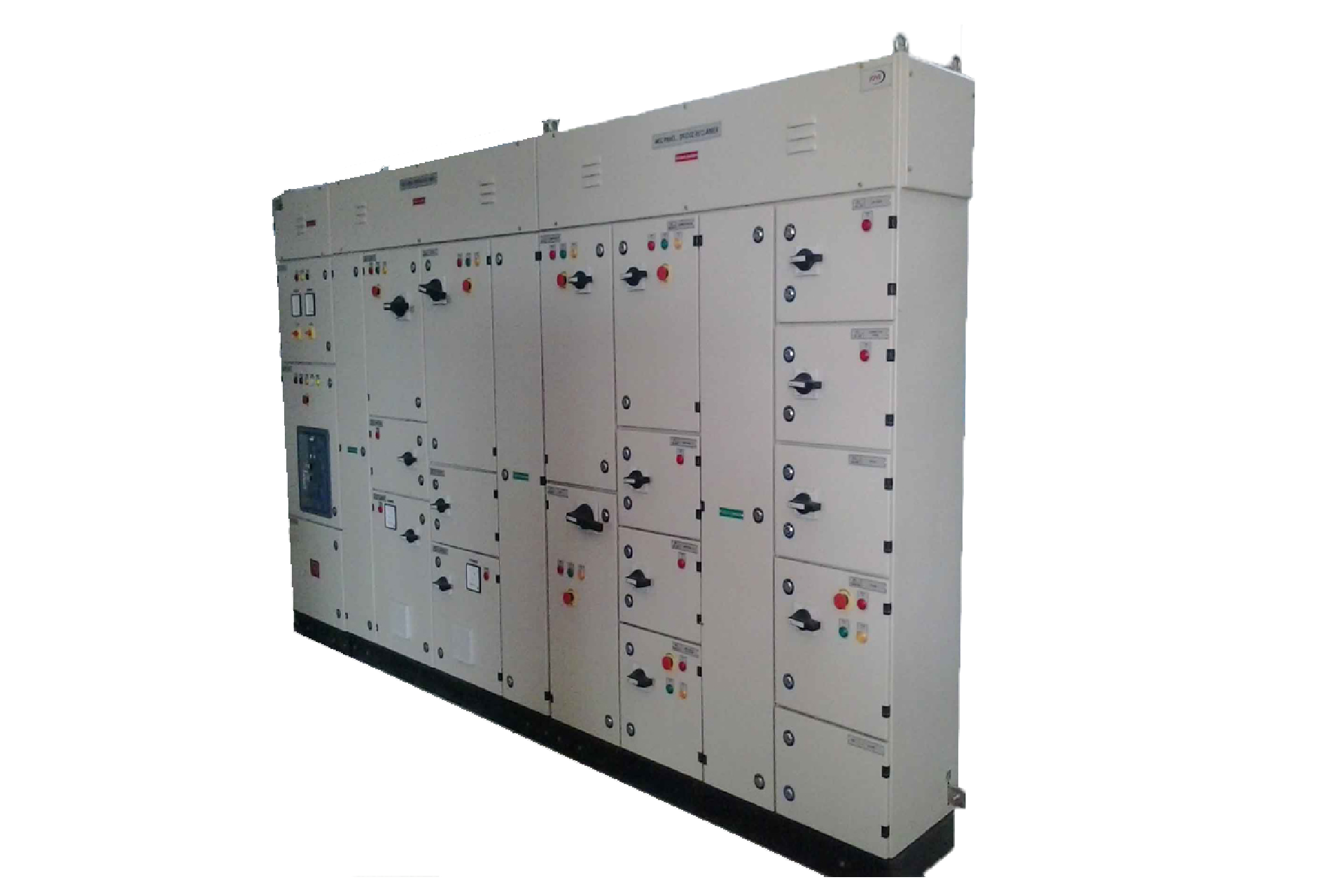

MCC Panel – Motor Control Center Panel
Pelican Engineering Services is a leading MCC Panel (Motor Control Center Panel) manufacturer and supplier based in Ahmedabad, Gujarat, offering robust and high-performance solutions for motor control and protection. Our MCC Panels are primarily designed to control the start/stop function of electric motors and provide reliable protection against overloads and electrical faults.
We also specialize in customized MCC panels tailored to client-specific requirements, ensuring seamless integration across diverse applications. Pelican’s MCC panels are widely used in industries such as water treatment plants, process industries, heavy machinery, industrial automation, automotive manufacturing, medical equipment, office electronics, and telecommunications.
Design & Features of MCC Panel:
Our MCC panels are built to conform to the latest electrical standards, ensuring durability, safety, and performance. Key features include:
- Feeders are configured based on motor and blower ratings
- Manual and auto operational modes:
- Manual: Motors can be operated directly
- Auto: Motors operate through external signals (e.g., sensor feedback via control panel)
- Operation flexibility from local, remote, or DCS systems
- Integrated indicators for motor operation status
- Inbuilt protection against overload, short circuit, and single phasing
- Optional advanced protections: earth fault, reverse power, under-load, over/under voltage
- Availability of Intelligent MCC Panels compatible with PLC and SCADA systems for smart automation
Technical Specification:
| Particular | Specification |
|---|---|
| Type | MCC Panel – Full Drawn |
| Rated Insulation Voltage | 660V 50 HZ |
| Rated Operated Voltage | 415 V |
| Rated Operated Frequency | 50 HZ |
| Rated Current | Main Horizontal Busbar 400A To 3000A, Vertical Riser 600A |
| Short Circuit Strength | 50 KA RMS For 1sec With 1 Sec With A Peak Current Of 105KA |
| Ambient Temperature | Design Ambient Temperature. Standard 40°C Operated 45°C & 50°C |
| Protection Grade | IP 52, IP 54 As IS 13947 |
| Panel Size | As Per The Specification Vary |
Types of MCC Panels Available:
Depending on the application and system layout, we offer a wide range of MCC panel configurations, including:
- Fully Draw-Out Type
- Non-Draw-Out Type
- Compartmentalized
- Non-Compartmentalized
- Single Front Operated
- Double Front Operated
