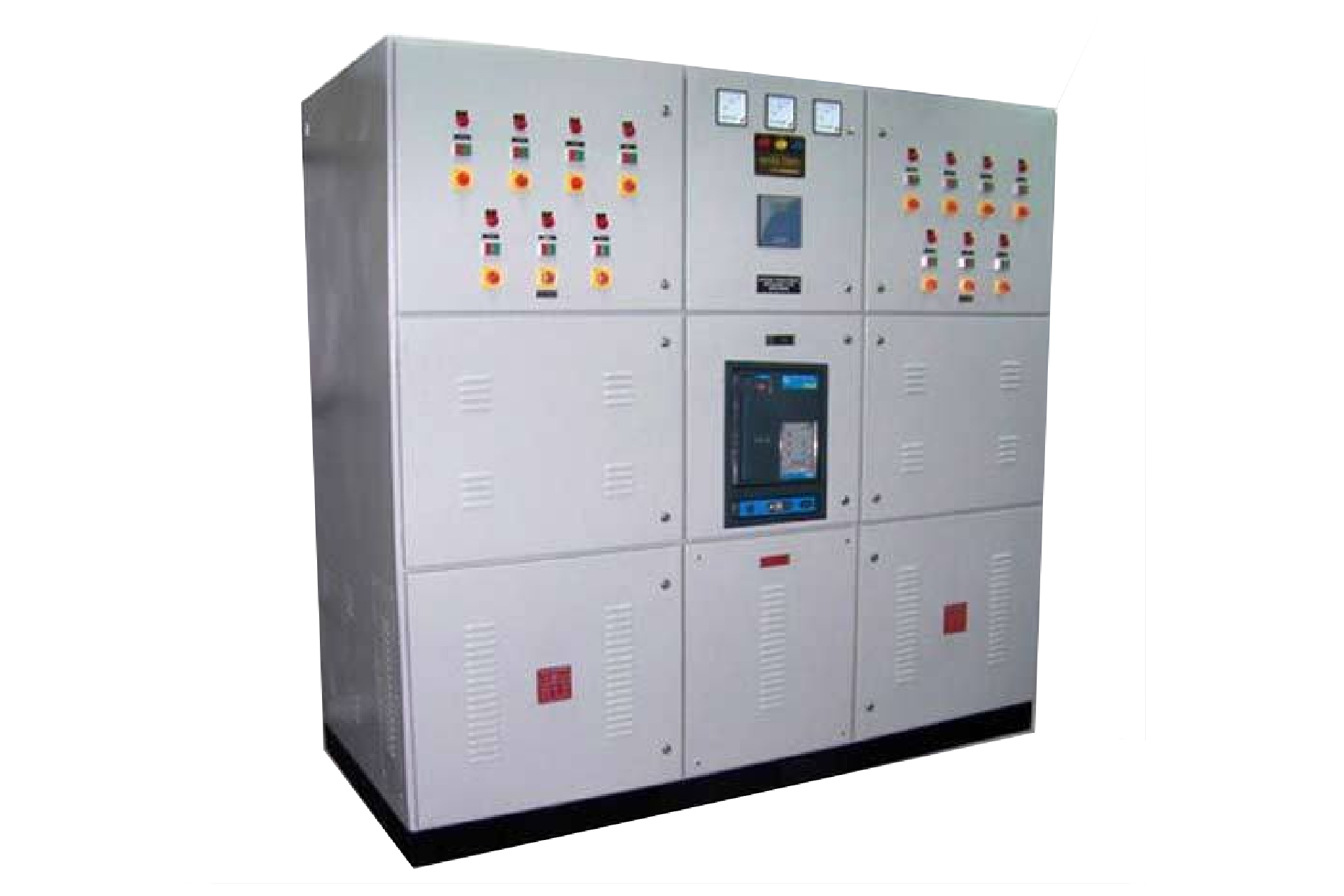

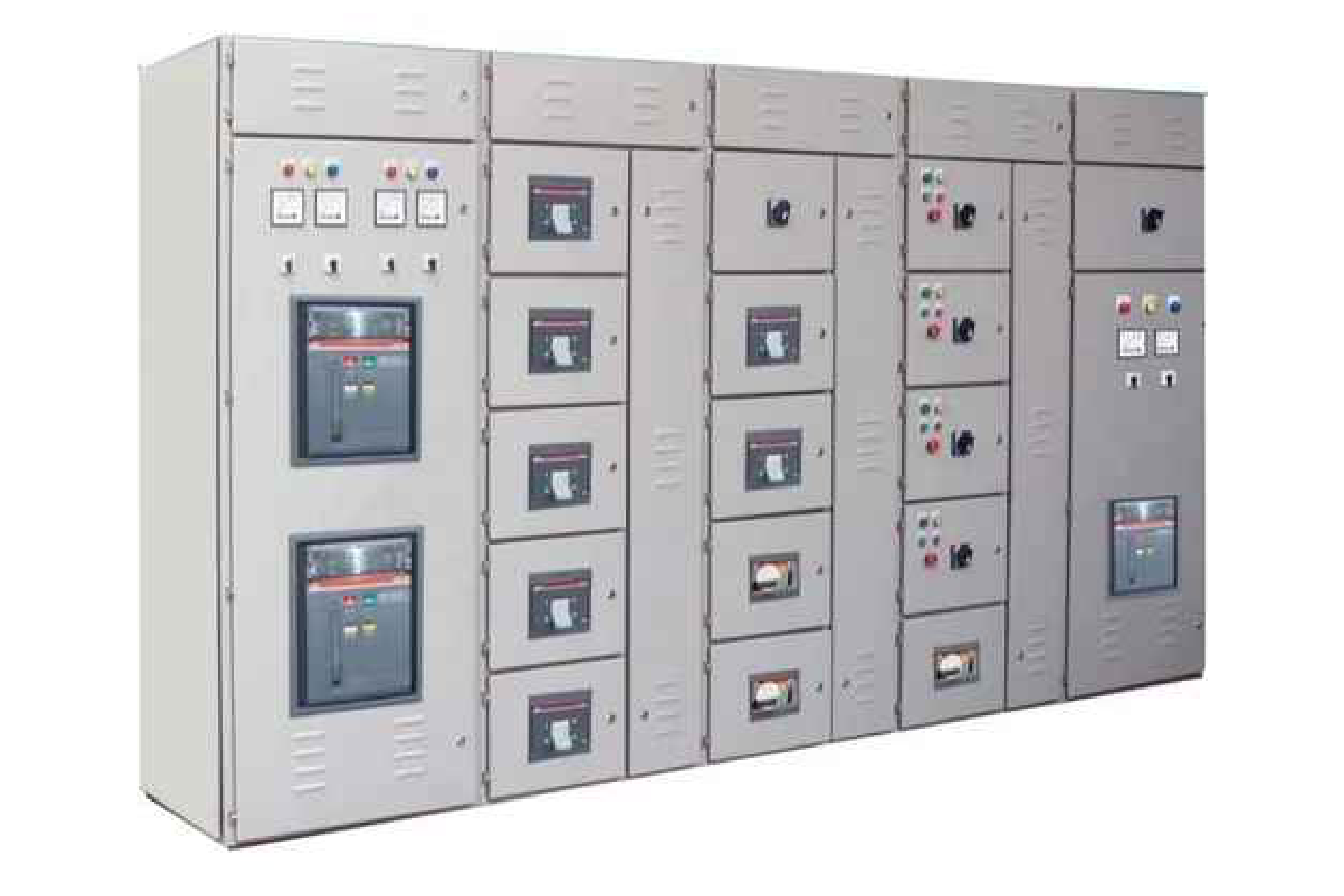

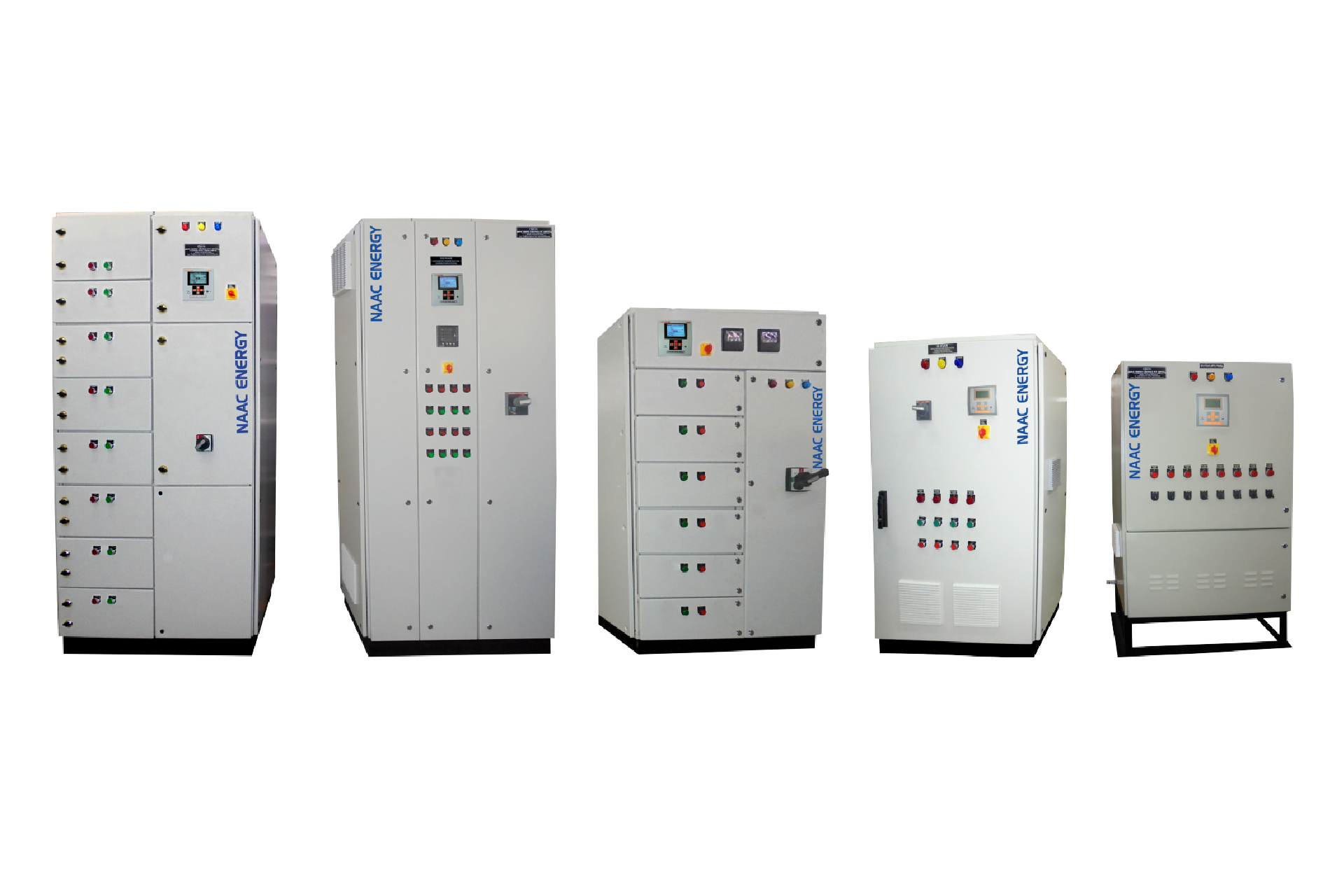

APFC Panel – Automatic Power Factor Control Panel

Pelican Engineering Services is a prominent APFC Panel (Automatic Power Factor Control Panel) manufacturer and supplier based in Ahmedabad, Gujarat, India. Our APFC Panels are designed to optimize the power factor of electrical systems, enhancing overall efficiency and reducing power losses. The power factor, defined as the ratio of active power (kW) to apparent power (kVA), reflects how efficiently electrical power is being utilized (PF = kW / kVA).

These panels are engineered to automatically manage rapidly fluctuating and scattered loads, maintaining a consistently high power factor across various operating conditions. Pelican Engineering Services offers custom-built APFC Panels in multiple current ratings to suit a wide range of industrial and commercial applications.

Key Features of APFC Panels:

  • Advanced design with a sleek, ergonomic finish
  • High performance with long-lasting durability
  • Fabricated using premium-grade stainless steel
  • Electrical circuits equipped with individual fuses for safety
  • Fitted with capacitors and series reactors to minimize harmonic distortion
  • Cost-effective solution with a short payback period
  • Ensures consistent high power factor operation
  • Prevents penalties caused by low power factor
  • Reduces KVA demand charges
  • Improves system efficiency by minimizing energy losses
  • Avoids leading power factor during light load conditions

Technical Specification:

Below Is The Typical Technical Specification Of Our APFC Panel. Specification Can Be Alter As Per The Customer Requirement

Particular Specification
Rated Voltage 400 / 415 / 440 / 690 V
Rated Frequency 50 / 60 Hz
Rated Out Put 50 - 2000 KVAr
Configuration Delta / Star Floating / Star Grounding
Number Of Steps 1-16
Step Distribution As Per User Requirement
Series Reactor 5.6%, 7%, 14%
Switching Device Thyristor / Capacitor Duty Contactor
Panel Type Standard / Modular / Compartmentalized / Un Compartmentalized
Branch Protection HRC Fuse / Semiconductor Fuse / SFU / MCCB
Capacitors Resin Filled / Gas Filled / APP.
Protections Over Voltage / Under Voltage / Short Circuit / Earth Fault / Over Temperature
Measuring CT 1 Or 3

Application of APFC Panels:

Pelican Engineering Services Has Successfully Put the APFC Panel in Use in the Following Industries / Applications

  • Windmills
  • Monitoring Current Harmonics
  • Process Controllers
  • Micro Processors
  • LT & HT Factories
  • Electrical Installations
  • Line Voltage Analysis
